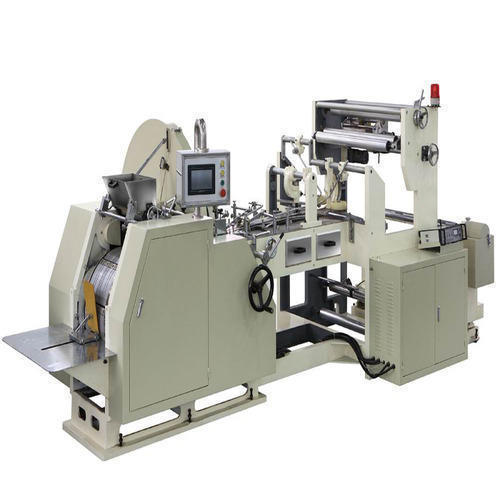

Automatic Paper Bag Making Machine

Automatic Paper Bag Making Machine
Automatic Paper Bag Making Machine
Send Inquiry
Product Code : 09
Brand Name : A1 Hi Tech Machines
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units
  • Price
  • 1600000 INR
  • Price Range
  • 350000.00 - 1600000.00 INR
Product Specifications
  • Product Type
  • Paper Bag Making Machine
  • General Use
  • Making Paper Bag
  • Efficiency
  • High
  • Weight (kg)
  • 1.15 ton Tonne
  • Automatic Grade
  • Automatic
  • Drive Type
  • Manual
  • Bag Type
  • Shopping Bag
  • Film Length Counter
  • Yes
  • Bag Length
  • width 12cm to 42cm Length 15cm to 60cm Centimeter (cm)
  • Power
  • 7.8 Kw Watt (w)
  • Voltage
  • 220-440 Volt (v)
  • Material
  • Paper
  • Dimension(L*W*H)
  • 16.40Lx5.57Wx7.21H Foot (ft)
  • Feature
  • Long Service Life
  • Color
  • As Per Requirement
  • Warranty
  • 1 year
Product Description

Other Details:

  • Phase: Single, Three
  • Condition: New
  • Surface Treatment: Color Coated

Technical specification

Paper cover running size

Width 6cm to 15cm & Length 9cm to 22cm

GSM of the Paper

40GSM to 140GSM

BF Strength of the Paper

16BF to 34BF

Unwind Paper roll size

UP TO 1000MM

Production covers per hour

UP TO 14000 to 20000 (depends on cover size)

Motor

Without printer 1 H.P 3Phase induction motor 230V (or) 440V

With single colour printer 1.5 H.P 3Phase induction motor 230V (or) 440V

With double colour printer 1.5 H.P 3Phase induction motor 230V (or) 440V

Counting and Sensor system (optional)

Digital counter with batch counting and PNP photo electric or metal magnetic sensor

Plate sizes

6 Size of standard plates attached

Gear sizes

6 Size gears are attached

Curb Weight

650 Kg (negotiation with attached units)

Machine Dimension

12.50(L) x 4.00(W) x 4.70(H) all in ft

Gum tank capacity(Tail)

2Kg (to use semi solid gum)

Gum tank capacity(center)

1Liter (to use liquid gum)

Gum type

Water based ordinary binding gum

Printing unit space

To keep at least 3ft away from the machine for better print quality

Suggest printing system

Flexo printing

Available printing units

Single & Double colour

Inking system

Water Base INK


Trade Information
  • Supply Ability
  • As per Order Per Month
  • Delivery Time
  • As Per Location Days
  • Sample Available
  • Yes
  • Packaging Details
  • By wrapping
  • Main Export Market(s)
  • Africa, Asia
  • Main Domestic Market
  • All India
